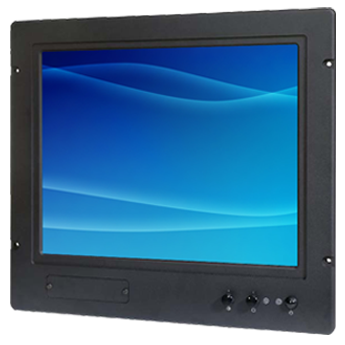

Rack Mount LCD Marine Monitor
KME have developed a high resolution TFT panel which is designed to withstand the maritime environment. The displays are IP sealed to withstand shock and vibration and are designed to comply with marine approved standards. The popular rack front monitor has a rugged milled aluminium rack front and is manufactured in full compliance with IACS E10.
Designed with ECDIS and radar in mind, the range specifically meets the stringent demands of shock, vibration, EMC and EMI defined in the IEC 60945 International Standard for Maritime Navigation and Radio communications equipment & systems.
Model Details:
- Low-cost rack mount solution
- Advanced deep dimming 2000:1
- Automatic image size adjustment and Picture in Picture
- Built-in external power relay (AC version)
- Certified to IEC 60945
- ECDIS and radar compliant IEC 61174
- Video buffer (multi-drop) and RS232 remote control
- 15 inch- 29LR153A35MP/5
- 15 inch- 29LR153D35MP/5
- 15 inch- 29LR153A35PC/1
- 15 inch- 29LR153AR35PC/1
- 17 inch- 29LR173A35MP/5
- 17 inch- 29LR173D35MP/5
- 19 inch- 29LR193A35MP/6
- 19 inch- 29LR193D35MP/6
- 21.3 inch- 29LR213A35MP/5
- 21.3 inch- 29LR213D35MP/5
- 23.1 inch- 29LR233A35MP/5
- 23.1 inch- 29LR233D35MP/5
- 26 inch- 29LR263WA35MP/5
29LR153A35MP/5
- Sizes: 15 inch
- Max Resolution: 1024 x 768 pixels
- Active Display: 304.1 x 228.1mm
- Brightness: 250cd/m2 typical
- Viewing Angles: 130°H / 110°V
- Signal Sync: Separate H & V (=/ve) TTL or Composite (-ve) TTL or Sync -on - Green (-ve) 0.3V
- Power Supply: 110-230v AC 50-60Hz
- Power Consumption: 50W (Max)
- Monitor Dimensions: 430(w) x 363(h) x 89(d) mm
- Monitor Weight: 9kg approx
Optional Extras
- Resistive touchscreen via RS232
- Capacitive touchscreen
- Transflective sunlight readable enhancement
29LR153D35MP-5
- Sizes: 15 inch
- Max Resolution: 1024 x 768 pixels
- Active Display: 304.1 x 228.1mm
- Brightness: 250cd/m2 typical
- Viewing Angles: 130°H / 110°V
- Signal Sync: Separate H & V (=/ve) TTL or Composite (-ve) TTL or Sync -on - Green (-ve) 0.3V
- Power Supply: 15 - 30v DC
- Power Consumption: 50W (Max)
- Monitor Dimensions: 430(w) x 363(h) x 89(d) mm
- Monitor Weight: 9kg approx
Optional Extras
- Resistive touchscreen via RS232
- Capacitive touchscreen
- Transflective sunlight readable enhancement
29LR153A35PC/1
- Sizes: 15 inch
- Max Resolution: 1024 x 768 pixels
- Active Display: 304.1 x 228.1mm
- Brightness: 250cd/m2 typical
- Viewing Angles: 130°H / 110°V
- Signal Sync: Separate H & V (=/ve) TTL or Composite (-ve) TTL or Sync -on - Green (-ve) 0.3V
- Power Supply: 110-230v AC 50-60Hz
- Power Consumption: 50W (Max)
- Monitor Dimensions: 430(w) x 363(h) x 89(d) mm
- Monitor Weight: 9kg approx
Optional Extras
- Resistive touchscreen via RS232
- Capacitive touchscreen
- Transflective sunlight readable enhancement
29LR153AR35PC/1
- Sizes: 15 inch
- Max Resolution: 1024 x 768 pixels
- Active Display: 304.1 x 228.1mm
- Brightness: 250cd/m² typical
- Viewing Angles: 130°H / 110°V
- Signal Sync: Separate H & V (=/ve) TTL or Composite (-ve) TTL or Sync -on - Green (-ve) 0.3V
- Power Supply: 110-230v AC 50-60Hz
- Power Consumption: 50W (Max)
- Monitor Dimensions: 430(w) x 363(h) x 89(d) mm
- Monitor Weight: 9kg approx
Optional Extras
- Resistive touchscreen via RS232
- Capacitive touchscreen
- Transflective sunlight readable enhancement
29LR173A35MP/5
- Sizes: 17 inch
- Max Resolution: 1280 x 1024 SXGA
- Active Display: 337.92 x 270.336 mm
- Brightness: 280cd/m² typical
- Viewing Angles: 178°H / 178°V
- Signal Sync: Separate H & V (=/ve) TTL or Composite (-ve) TTL or Sync -on - Green (-ve) 0.3V
- Power Supply: 90-265v AC 50-60Hz
- Power Consumption: 65W (Max)
- Monitor Dimensions: 460(w) x 399.9(h) x 89.4(d)mm
- Monitor Weight: 11kg approx
Optional Extras
- Resistive touchscreen via RS232
- Capacitive touchscreen
- Transflective sunlight readable enhancement
29LR173D35MP/5
- Sizes: 17 inch
- Max Resolution: 1280 x 1024 SXGA
- Active Display: 337.92 x 270.336 mm
- Brightness: 280cd/m² typical
- Viewing Angles: 178°H / 178°V
- Signal Sync: Separate H & V (=/ve) TTL or Composite (-ve) TTL or Sync -on - Green (-ve) 0.3V
- Power Supply: 15 - 30v DC
- Power Consumption: 65W (Max)
- Monitor Dimensions: 460(w) x 399.9(h) x 89.4(d)mm
- Monitor Weight: 11kg approx
29LR193A35MP/6
- Sizes: 19 inch
- Max Resolution: 1280 x 1024 SXGA
- Active Display: 376.3 x 301.1 mm
- Brightness: 250cd/m2 typical
- Viewing Angles: 170°H / 170°V
- Signal Sync: Separate H & V (=/ve) TTL or Composite (-ve) TTL or Sync -on - Green (-ve) 0.3V
- Power Supply: 90-265v AC 50-60 Hz
- Power Consumption: 65W (Max)
- Monitor Dimensions: 463(w) x 444(h) x 78+14 (d) mm
- Monitor Weight: 10kg approx
29LR193D35MP/6
- Sizes: 19 inch
- Max Resolution: 1280 x 1024 SXGA
- Active Display: 376.3 x 301.1 mm
- Brightness: 250cd/m2 typical
- Viewing Angles: 170°H / 170°V
- Signal Sync: Separate H & V (=/ve) TTL or Composite (-ve) TTL or Sync -on - Green (-ve) 0.3V
- Power Supply: 15 - 30v DC
- Power Consumption: 65W (Max)
- Monitor Dimensions: 463(w) x 444(h) x 78+14 (d) mm
- Monitor Weight: 10kg approx
Optional Extras
- Resistive touchscreen via RS232
- Capacitive touchscreen
- Transflective sunlight readable enhancement
29LR213A35MP/5
- Sizes: 21.3 inch
- Max Resolution: 1600 x 1200 UXGA
- Active Display: 432 x 324 mm
- Brightness: 300cd/m2 typical
- Viewing Angles: 170°H / 170°V
- Signal Sync: Separate H & V (=/ve) TTL or Composite (-ve) TTL or Sync -on - Green (-ve) 0.3V
- Power Supply: 15 - 30v DC
- Power Consumption: 65W (Max)
- Monitor Dimensions: 534(w) x 481(h) x 82(d)mm
- Monitor Weight: 13kg approx
Optional Extras
- Resistive touchscreen via RS232
- Capacitive touchscreen
29LR213D35MP/5
- Sizes: 21.3 inch
- Max Resolution: 1600 x 1200 UXGA
- Active Display: 432 x 324 mm
- Brightness: 300cd/m2 typical
- Viewing Angles: 170°H / 170°V
- Signal Sync: Separate H & V (=/ve) TTL or Composite (-ve) TTL or Sync -on - Green (-ve) 0.3V
- Power Supply: 15 - 30v DC
- Power Consumption: 65W (Max)
- Monitor Dimensions: 534(w) x 481(h) x 82(d)mm
- Monitor Weight: 13kg approx
Optional Extras
- Resistive touchscreen via RS232
- Capacitive touchscreen
29LR233A35MP/5
- Sizes: 23.1 inch
- Max Resolution: 1600 x 1200 UXGA
- Active Display: 470.4 x 352.8 mm
- Brightness: 250cd/m2 typical
- Viewing Angles: 170°H / 170°V
- Signal Sync: Separate H & V (=/ve) TTL or Composite (-ve) TTL or Sync -on - Green (-ve) 0.3V
- Power Supply: 90-265v AC 50-60Hz
- Power Consumption: 65W (Max)
- Monitor Dimensions: 584(w) x 534(h) x 91.7(d)mm
- Monitor Weight: 16kg approx
Optional Extras
- Resistive touchscreen via RS232
- Capacitive touchscreen
29LR233D35MP/5
- Sizes: 23.1 inch
- Max Resolution: 1600 x 1200 UXGA
- Active Display: 470.4 x 352.8 mm
- Brightness: 250cd/m2 typical
- Signal Sync: Separate H & V (=/ve) TTL or Composite (-ve) TTL or Sync -on - Green (-ve) 0.3V
- Power Supply: 15 - 30v DC
- Power Consumption: 65W (Max)
- Monitor Dimensions: 584(w) x 534(h) x 91.7(d)mm
- Monitor Weight: 16kg approx
Optional Extras
- Resistive touchscreen via RS232
- Capacitive touchscreen
29LR263WA35MP/5
- Sizes: 26 inch
- Max Resolution: 1920 x 1200 WUXGA
- Active Display: 550.08 x 343.8mm
- Brightness: 500cd/m2 typical
- Viewing Angles: 178°H / 178°V
- Signal Sync: Separate H & V (=/ve) TTL or Composite (-ve) TTL or Sync -on - Green (-ve) 0.3V
- Power Supply: 90/265v 50/60Hz
- Power Consumption: 65W (Max)
- Monitor Dimensions: 665(w) x 526(h) x 91.7(d)mm
- Monitor Weight: 16kg approx
Optional Extras
- Resistive touchscreen via RS232
- Capacitive touchscreen
